环保抗氧化焊锡条系列 LBC07 Sn99.3Cu0.7Ni
采用高纯精锡、精银、无氧铜等为原材料，通过先进的生产工艺进行脱氧、除渣处理，添加进口优良的抗氧化合金，通过先进的设备挤压制作。产品润湿性能更加，焊接作业产生的锡灰更少。
适用范围：适用于线路板的波峰焊接及高温的变压器，继电器，电子元器件引脚的焊接。因其是无铅焊料成本最低的合金之一，目前使用最为广泛。
无铅产品参照表
|
产品型号
Model |
合金成分
Alloy components |
固化温度与液化温度
Solidify and fluidity temperature |
锡条
Bar |

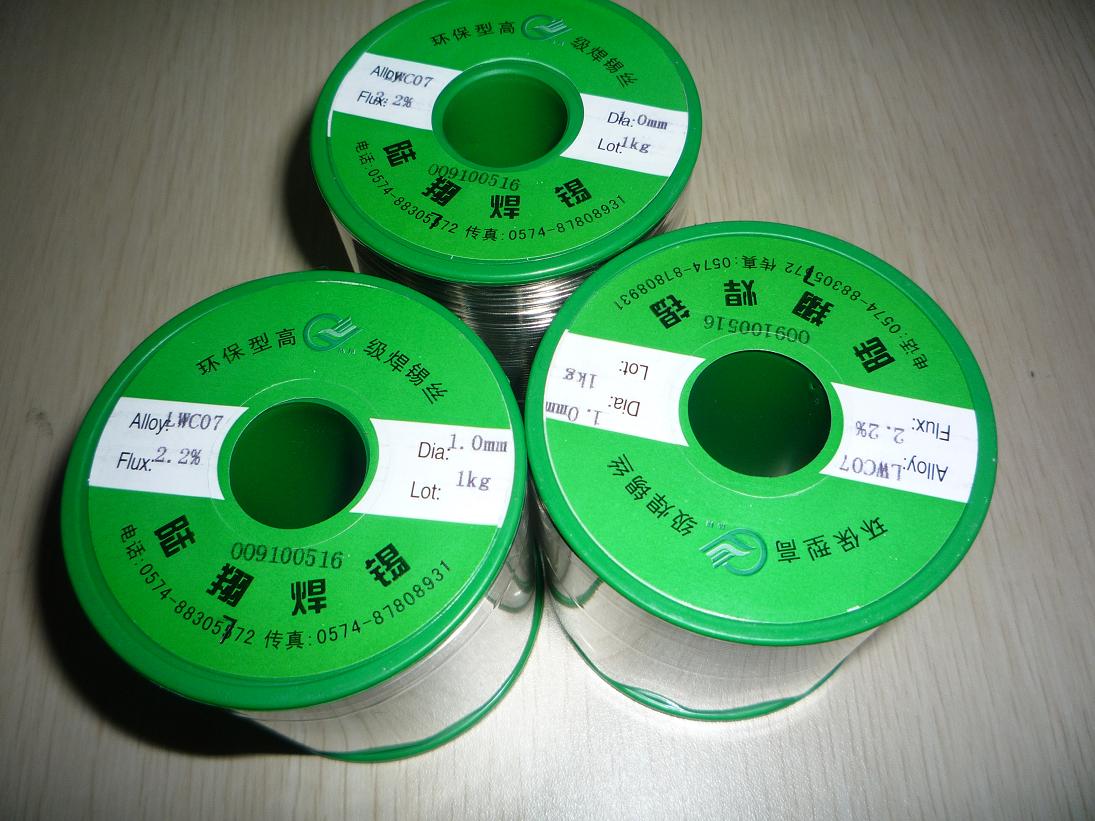

锡线 Solder wire |
|
单芯
Single-core |
三芯
Three-core |
实芯
Solid-core |
|
LB(W)C07 |
Sn99.3Cu0.7 |
227-227 |
√ |
√ |
√ |
√ |
|
LB(W)C05 |
Sn99.5Cu0.5 |
227-227 |
√ |
√ |
√ |
√ |
|
LB(W)C30 |
Sn97Cu3 |
227 |
√ |
√ |
√ |
√ |
|
LB(W)S50 |
Sn95Sb5 |
240-243 |
√ |
√ |
√ |
√ |
|
LB(W)A30 |
Sn97Ag3 |
221-230 |
√ |
√ |
√ |
√ |
|
LB(W)A35 |
Sn96.5Ag3.5 |
221 |
√ |
√ |
√ |
√ |
|
LB(W)A40 |
Sn96Ag4 |
221 |
√ |
√ |
√ |
√ |
|
LB(W)A35C |
Sn96Ag3.5Cu0.5 |
217-219 |
√ |
√ |
√ |
√ |
|
LB(W)A30C |
Sn96.5Ag3Cu0.5 |
217-220 |
√ |
√ |
√ |
√ |
|
LB(W)A03C |
Sn99.2Ag0.3Cu0.5 |
217-227 |
√ |
√ |
√ |
√ |
|
LB(W)A20C |
Sn97.5Ag2Cu0.5 |
217-222 |
√ |
√ |
√ |
√ |
|
LB(W)A10C |
Sn98.5Ag1Cu0.5 |
217-223 |
√ |
√ |
√ |
√ |
|
LB(W)A35C |
Sn95.7Ag3.5Cu0.8 |
217-219 |
√ |
√ |
√ |
√ |
|
LB(W)A35B |
Sn91.6Ag3.5Bi4.9 |
205-210 |
√ |
√ |
√ |
√ |
|
LB(W)Z90 |
Sn91Zn9 |
199 |
√ |
|
|
|
|
LB(W)B580 |
Sn42Bi58 |
139 |
√ |
|
|
|
|
LB(W)Z80B |
Sn89Zn8Bi3 |
190/197 |
√ |
|
|
|
|
LB(W)I520 |
Sn48In52 |
118 |
√ |
|
|
|
|
|
|
绿色块为公司主流产品，黄色块和蓝色块根据客户需求商定后供货，蓝色块为低温产品。
Green area is popular products in stock,yellow and blue areas are supplied according to the customer’s demand,blue area is low temperature products. |
